Ten Plus designs and manufactures a complete line of architectural louvers, vision screens, sunshades and custom metal fabrications. Ten Plus office and manufacturing facilities are located in Mississauga, Ontario.
Since inception in 1998, Ten Plus have employed an unwavering commitment to product quality and customer service and this approach has served them well. Their staff is highly skilled and committed to excellence. They pride themselves in leveraging technology and innovation to improve productivity and competitiveness.
They listen to their customers, so they can understand the requirements and expectations, then they execute. We welcome your call and look forward to serving you.
ALUMINUM PRODUCTS GOLD SERVICE
Ten Plus provides a number of architectural specialty products that are designed and manufactured to the highest industry standards. Their success is based on a commitment to product quality and outstanding customer service.
This is achieved by promoting a policy of constant self-improvement through education, training and upgrading and investing in technology, modern equipment and employing an extensive quality control program for every product that comes out of the shop.
We are confident that we can satisfy your design requirements and we look forward to taking your call and working with you.

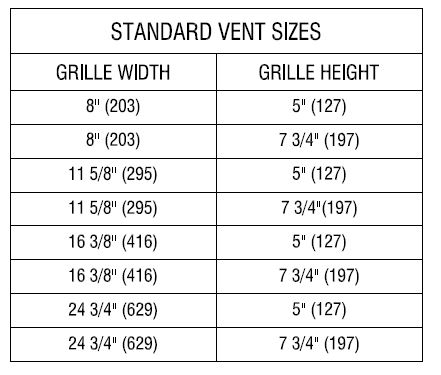

The B4450, by Ten Plus Architectural, is a heavy-duty extruded aluminum block vent. The aluminum construction makes it resistant to the corrosive environment of foundation wallas and chimneys. The block vent comes with an insect screen and features both extended head and sill to provide a drip edge for water to travel around the opening. The sill has an integral water stop at the back to prevent any water flowing into the building.

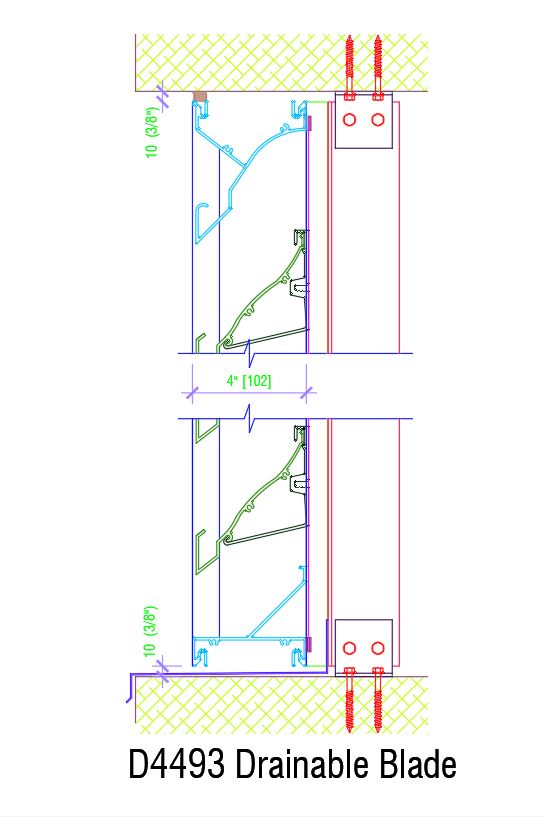

D4493 is a 4″ drainable louver model. The blades categorize as straight although the design shows a slight contour to the blade profile. The top of the blade has a U shape designed to prevent wind-driven rain from pushing past the top edge. There is also a gutter channel located at the front of the blade profile. This channel collects water and diverts it to the additional channels located at the jambs (and mullions if selected). The majority of rainwater that hits the blade makes a controlled migration to the outside of the building envelope. The blade gutter also prevents water from cascading down the louver’s face, which can cause dirt accumulation and discoloration to the louver. This product is available in Mullion Construction or Continuous Line Construction. The perimeter frame comes with either a Standard Frame (Undersize 3/4″(20mm with backer rod and caulking), Flange Frame (for overlapping adjacent building envelope with flange), or Glazing Frame (for glazing the screen into a Window Wall or Curtain Wall framing system). The corners can be detailed as boxed (standard) or mitered (upgrade). Please ensure to specify if the head/sill profile is required (optional) as well as head closures (optional).
D6403 is a 6″ drainable louver model. The blades categorize as straight although the design shows a slight contour to the blade profile. The top of the blade has a U shape designed to prevent wind-driven rain from pushing past the top edge. There is also a gutter channel located at the front of the blade profile. This channel collects water and diverts it to the additional channels located at the jambs (and mullions if selected). The majority of rainwater that hits the blade makes a controlled migration to the outside of the building envelope. The blade gutter also prevents water from cascading down the louver’s face, which can cause dirt accumulation and discoloration to the louver. This product is available in Mullion Construction or Continuous Line Construction. The perimeter frame comes with either a Standard Frame (Undersize 3/4″(20mm with backer rod and caulking), Flange Frame (for overlapping adjacent building envelope with flange), or Glazing Frame (for glazing the screen into a Window Wall or Curtain Wall framing system). The corners can be detailed as boxed (standard) or mitered (upgrade). Please ensure to specify if the head/sill profile is required (optional) as well as head closures (optional).

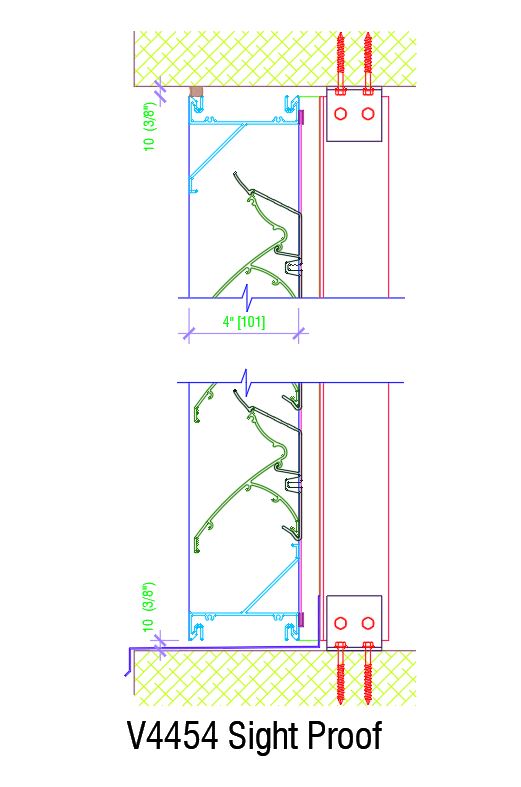

The V4454, by Ten Plus Architectural, is an adaptation of the H4451 storm blade, and the front of the louvered blades are identical. The intention is to maintain and extend blade lines from a louver to a vision screen in situations where they are adjacent or in proximity to each other.

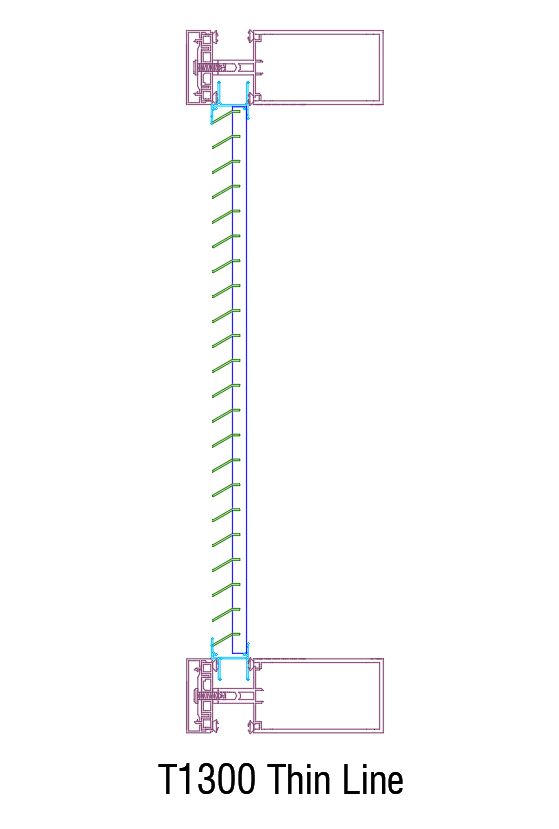

The T1300, by Ten Plus, is a high free area, extruded aluminum Thinline louver. The model is ideal for small openings, PTAC applications, decorative, or interior applications.

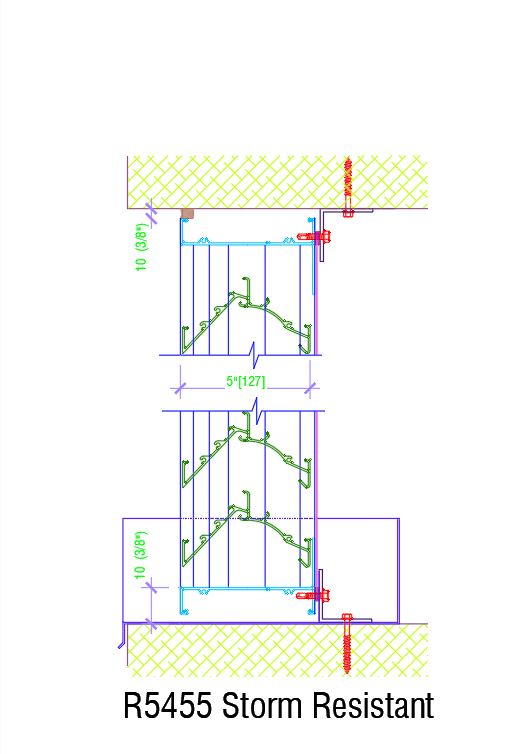

R5455 is a 5″ storm-resistant model and carries the AMCA performance rating AMCA Standard 500L. The blades categorize as chevron and include several gutter cavities at strategic locations throughout the blade’s profile. The coathanger blade shape lends itself well to catching water in the form of wind-driven rain. The main gutter channel is near the top of the blade profile, and includes a gutter at the front of the blade. These channels collects water and divert it to the additional vertical channels located at the jambs (and mullions if selected). The majority of rainwater that hits the blade makes a controlled migration to the outside of the building envelope. The blade gutters also help to prevent water from cascading down the louver’s face, which can cause dirt accumulation and discoloration to the louver’s finish. This product is available in Mullion Construction or Continous Line Construction. The perimeter frame comes with either a Standard Frame (Undersize 3/4″(20mm with backer rod and caulking), Flange Frame (for overlapping adjacent building envelope with flange), or Glazing Frame (for glazing the screen into a Window Wall or Curtain Wall framing system). The corners can be detailed as boxed (standard) or mitered (upgrade). Please ensure to specify if the head/sill profile is required (optional) as well as head closures (optional).

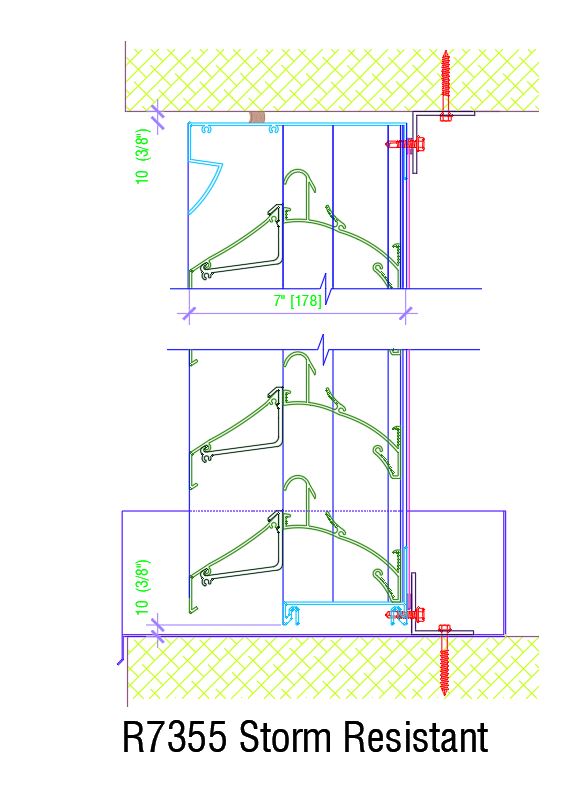

R7355 is a 7″ storm-resistant model and carries the AMCA performance rating AMCA Standard 500L. The blades categorize as chevron and include several gutter cavities at strategic locations throughout the blade’s profile. The coathanger blade shape lends itself well to catching water in the form of wind-driven rain. The main gutter channel is near the top of the blade profile. This channel collects water and diverts it to the additional channels located at the jambs (and mullions if selected). The majority of rainwater that hits the blade makes a controlled migration to the outside of the building envelope. The blade gutters also help to prevent water from cascading down the louver’s face, which can cause dirt accumulation and discoloration to the louver’s finish. This product is available in Mullion Construction or Continous Line Construction. The perimeter frame comes with either a Standard Frame (Undersize 3/4″(20mm with backer rod and caulking), Flange Frame (for overlapping adjacent building envelope with flange), or Glazing Frame (for glazing the screen into a Window Wall or Curtain Wall framing system). The corners can be detailed as boxed (standard) or mitered (upgrade). Please ensure to specify if the head/sill profile is required (optional) as well as head closures (optional).

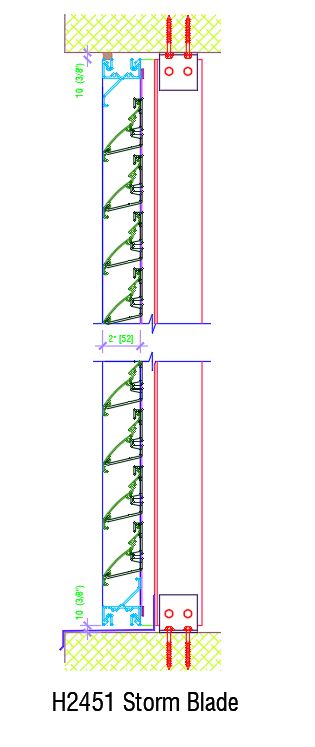

H2451 is a 2″ storm-blade model and carries the AMCA performance rating AMCA Standard 500L. The blades categorize as storm type and include mid-span and top of blade gutter cavities horizontally all along the blade’s profile. The storm blade shape has a couple of opportunities to catch water in the form of wind-driven rain. This channel collects water and diverts it to the additional vertical channels located at the jambs (and mullions if selected). This product is available in Mullion Construction or Continous Line Construction. The perimeter frame comes with either a Standard Frame (Undersize 3/4″(20mm with backer rod and caulking), Flange Frame (for overlapping adjacent building envelope with flange), or Glazing Frame (for glazing the screen into a Window Wall or Curtain Wall framing system). The corners can be detailed as boxed (standard) or mitered (upgrade). Please ensure to specify if the head/sill profile is required (optional) as well as head closures (optional).

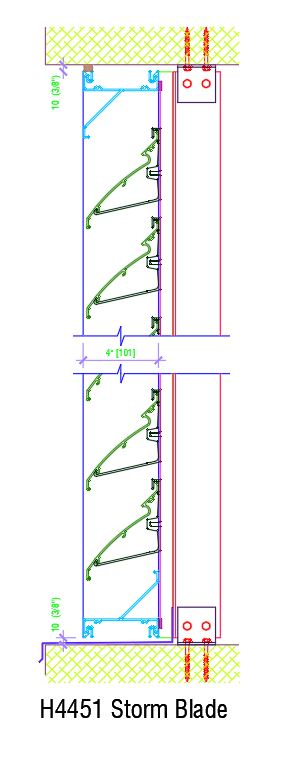

H4451 is a 4″ storm-blade model and carries the AMCA performance rating AMCA Standard 500L. The blades categorize as storm type and include mid-span and top of blade gutter cavities horizontally all along the blade’s profile. The storm blade shape has a couple of opportunities to catch water in the form of wind-driven rain. This channel collects water and diverts it to the additional vertical channels located at the jambs (and mullions if selected). This product is available in Mullion Construction or Continous Line Construction. The perimeter frame comes with either a Standard Frame (Undersize 3/4″(20mm with backer rod and caulking), Flange Frame (for overlapping adjacent building envelope with flange), or Glazing Frame (for glazing the screen into a Window Wall or Curtain Wall framing system). The corners can be detailed as boxed (standard) or mitered (upgrade). Please ensure to specify if the head/sill profile is required (optional) as well as head closures (optional).

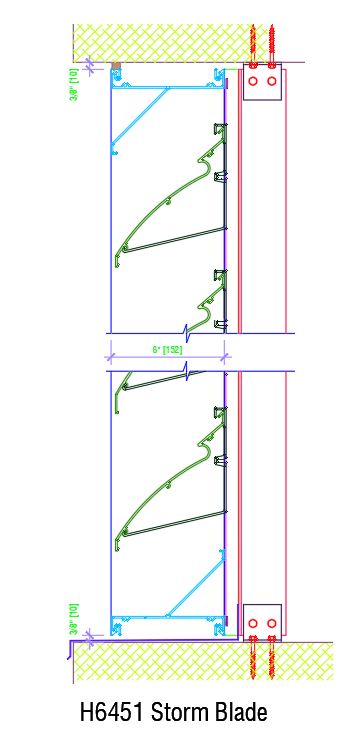

H6451 is a 6″ storm-blade model and carries the AMCA performance rating AMCA Standard 500L. The blades categorize as storm type and include mid-span and top of blade gutter cavities horizontally all along the blade’s profile. The storm blade shape has a couple of opportunities to catch water in the form of wind-driven rain. This channel collects water and diverts it to the additional vertical channels located at the jambs (and mullions if selected). This product is available in Mullion Construction or Continous Line Construction. The perimeter frame comes with either a Standard Frame (Undersize 3/4″(20mm with backer rod and caulking), Flange Frame (for overlapping adjacent building envelope with flange), or Glazing Frame (for glazing the screen into a Window Wall or Curtain Wall framing system). The corners can be detailed as boxed (standard) or mitered (upgrade). Please ensure to specify if the head/sill profile is required (optional) as well as head closures (optional).

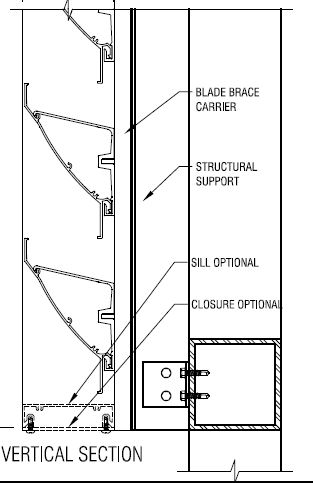

S4522 is a 4″ vision screen with inverted blades. The blades categorize as straight, although the design shows a slightly convex profile. This product is available in Mullion Construction or Continous Line Construction. The perimeter frame is available as a Standard Frame (Undersize 3/4″(20mm) with backer rod and caulking), Flange Frame (for overlapping adjacent building envelope with flange), or Glazing Frame (for glazing the screen into a Window Wall or Curtain Wall framing system). The corners can be detailed as boxed (standard) or mitered (upgrade). Please ensure to specify if the head/sill profile is required (optional) as well as head closures (optional).

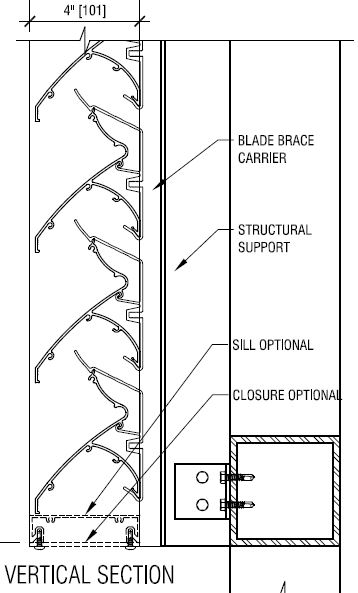

V4454VS is a 4″ Vision Screen blades are a chevron shape profile and use a blade brace bracket to maintain straight lines. This product is available in Mullion Construction or Continous Line Construction. The perimeter frame is available as Standard Frame (Undersize 3/4″(20mm) with backer rod and caulking), Flange Frame (for overlapping adjacent building envelope with flange), or Glazing Frame (for glazing the screen into a Window Wall or Curtain Wall framing system). The corners can be detailed as boxed (standard) or mitered (upgrade). Please ensure to specify if the head/sill profile is required (optional) as well as head closures (optional).

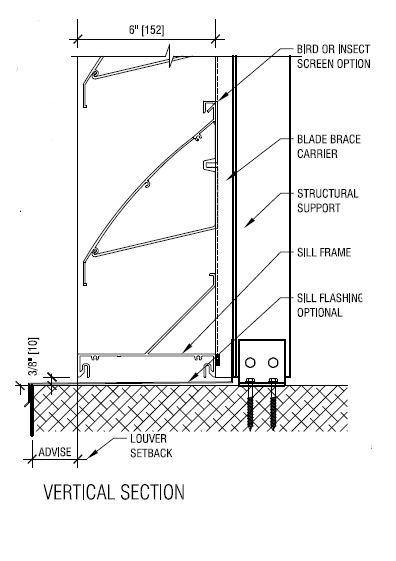

S6452 is a 6″ straight blade screen available in Mullion Construction or Continous Line Construction. The perimeter frame is available with a Standard Frame (Undersize 3/4″(20mm) with backer rod and caulking), Flange Frame (for overlapping adjacent building envelope with flange), or Glazing Frame (for glazing the screen into a Window Wall or Curtain Wall framing system).
